KE-LED-EX 5024 hand lamp 24x POWER LED | IP68
KE-LED-EX 5024 EX LED hand lamp | IP68
The KE-LED-EX 5024 is an ATEX LED hand lamp that provides you with extremely bright and glare-free light when working in explosion-protected areas. The 24 POWER LED modules and the integrated diffuser foil ensure optimal illumination. With its slim design, the low weight of approx. 2.2 kg and the comfortable neoprene handle, the light is perfect as a hand and inspection light. It is also available in different voltage variants.

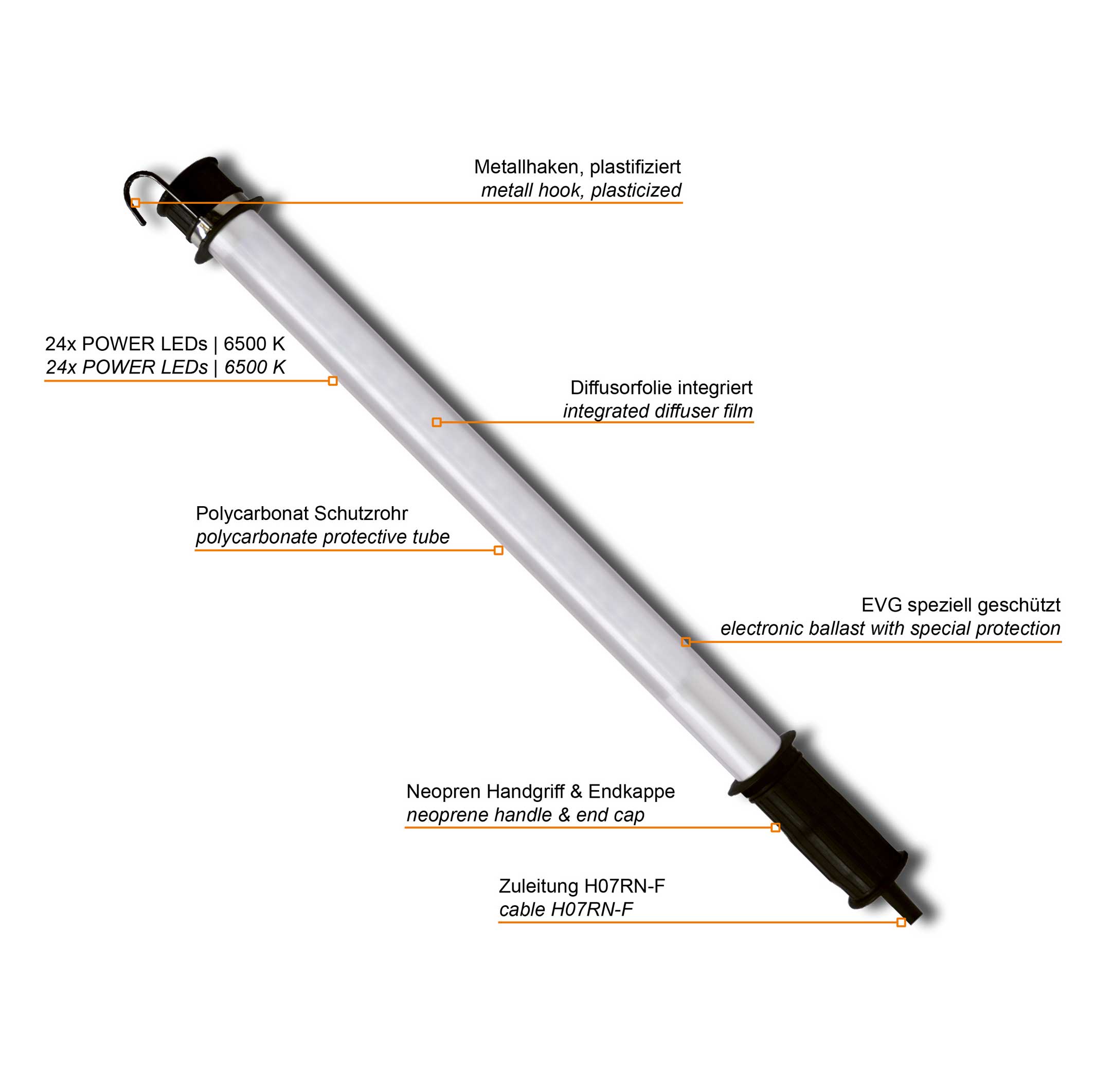

Features
- ex-proof LED hand lamp with 24 POWER LEDs / 650 0K
- Protection tube: polycarbonate, shock-resistant, 50 mm Ø
- Diffusor foil integrated
- Handle / end cap: neoprene, black
- Metal hook: yes, plastified
- Protection category: IP68 - 50m/5h (dust- and waterproof)
- Protection class: II / III
- Cable standard version: 10 m H07RN-F (extendable in 5 m steps)
- Standard version without plug, Ex plug (ATX, CEAG) available on request
- Available in the voltage versions: 230V / 110V / 24V
- Special requests - as covered by our Ex-certification - can be fulfilled
- KIRA explosion proof LED hand lamps (leadlamps) for safe use in the areas: Sewage treatment plants, sewer inspection, electricity providers, mills, biogas plants, gas stations, tank automotive, aerospace industry, aircraft maintenance & inspection, oil rigs, offshore, shipyards, THW, EX-zones, explosive dust and gas atmospheres, gas interference, crafts, food industry, chemical industry, petrochemical industry
| Nominal voltage | 230V | 110V | 24V |
| AC | AC/DC | AC/DC | |
| Current | 0,075 A | 0,135 A | 0,550 A |
| Power | 14,5 W | 14,5 W | 15,5 W |
| Protection class | II | II | III |
| Real lumen | 1550 Lm | 1600 Lm | 1650 Lm |
| Energy efficiency |  |
|
|
| Zones | 1, 2, 21, 22 | ||
| Explosion protection gas |  II 2 G Ex eb mb op is IIC T4 Gb |
||
| Explosion protection dust | II 2 D Ex tb op is IIIC T105° Db |
||
| Number LED | 24 | ||
| Color temperature | 6500 K | ||
| CRI | > 70 | ||
| Lifetime LED | > 50.000 h | ||
| Tamb | -20 °C to +40 °C | ||
| IP protection | IP68 | ||
| Diffuser film | yes | ||
| Protective tube | polycarbonate | ||
| Handle / End cap | neoprene | ||
| Suspension hook | yes, rotatable | ||
| Cable | H07RN-F | ||
| Plug | without | ||
| Weight | ca. 2,2 kg | ||
| Length | ca. 875 mm | ||
| KE-LED-EX 5024 hand lamp / Dimensions in mm | |||||||||
| a | b | c | d | e | f | g | h | i | j |
| 25 | 55 | 20 | 500 | 90 | 140 | 45 | 75 | 50 | 875 |
Article overview KE-LED-EX 5024 / ATEX hand lamp
| Art-Nr. | 230V | Length of the supply line |
| 148003 | 220-240 Volt AC | 5 m H07RN-F 2 x 1,0 mm² w/o plug |
| 148000 | 220-240 Volt AC | 10 m H07RN-F 2 x 1,0 mm² w/o plug |
| 148006 | 220-240 Volt AC | 15 m H07RN-F 2 x 1,0 mm² w/o plug |
| 148001 | 220-240 Volt AC | 20 m H07RN-F 2 x 1,5 mm² w/o plug |
| 148002 | 220-240 Volt AC | 25 m H07RN-F 2 x 1,5 mm² w/o plug |
| 148008 | 220-240 Volt AC | 30 m H07RN-F 2 x 1,5 mm² w/o plug |
| Art-Nr. | 110V | Length of the supply line |
| 148011 | 110 Volt AC/DC | 5 m H07RN-F 2 x 1,0 mm² w/o plug |
| 148010 | 110 Volt AC/DC | 10 m H07RN-F 2 x 1,0 mm² w/o plug |
| 148012 | 110 Volt AC/DC | 15 m H07RN-F 2 x 1,0 mm² w/o plug |
| 148013 | 110 Volt AC/DC | 20 m H07RN-F 2 x 1,5 mm² w/o plug |
| 148014 | 110 Volt AC/DC | 25 m H07RN-F 2 x 1,5 mm² w/o plug |
| 148015 | 110 Volt AC/DC | 30 m H07RN-F 2 x 1,5 mm² w/o plug |
| Art-Nr. | 24V | Length of the supply line |
| 148036 | 24 Volt AC/DC | 5 m H07RN-F 2 x 1,0 mm² w/o plug |
| 148030 | 24 Volt AC/DC | 10 m H07RN-F 2 x 1,0 mm² w/o plug |
| 148031 | 24 Volt AC/DC | 15 m H07RN-F 2 x 1,0 mm² w/o plug |
| 148032 | 24 Volt AC/DC | 20 m H07RN-F 2 x 1,5 mm² w/o plug |
| 148035 | 24 Volt AC/DC | 25 m H07RN-F 2 x 1,5 mm² w/o plug |
| 148034 | 24 Volt AC/DC | 30 m H07RN-F 2 x 1,5 mm² w/o plug |
- Datasheet KE-LED-EX 5024 hand lamp (605.9 KB)
- ATEX certificate KE-LED-EX 5024 (615.78 KB)
- Safety instructions (563.81 KB)
