KE-LED-EA 3010 UV-A tube luminaire 10x UV-A LED | IP20/IP54 | Length 330mm
KE-LED 3010 UV-A LED tube light
TThe KE-LED-EA 3010 UV-A is a tube and machine light that was specifically developed for use in UV-A lighting applications. With a slim tube diameter of 30mm, it offers a space-saving solution for a wide range of applications. Equipped with 10 UV-A LED modules and a wavelength of 365nm, it ensures precise and efficient illumination for different purposes. The 365nm wavelength is particularly suitable for UV-A processes such as drying and curing of inks, varnishes, coatings and UV-curing adhesives. The luminaire is available in versions with 230V and 24V voltage, which enables it to be adaptable to a wide range of operating environments.
Features
- lluminant: 10x UV-A LEDs / 365nm
- Protection tube: plexiglass, 30mm Ø
- End caps: ABS
- Attachment: 2x clamp, optionally 2x suction cup

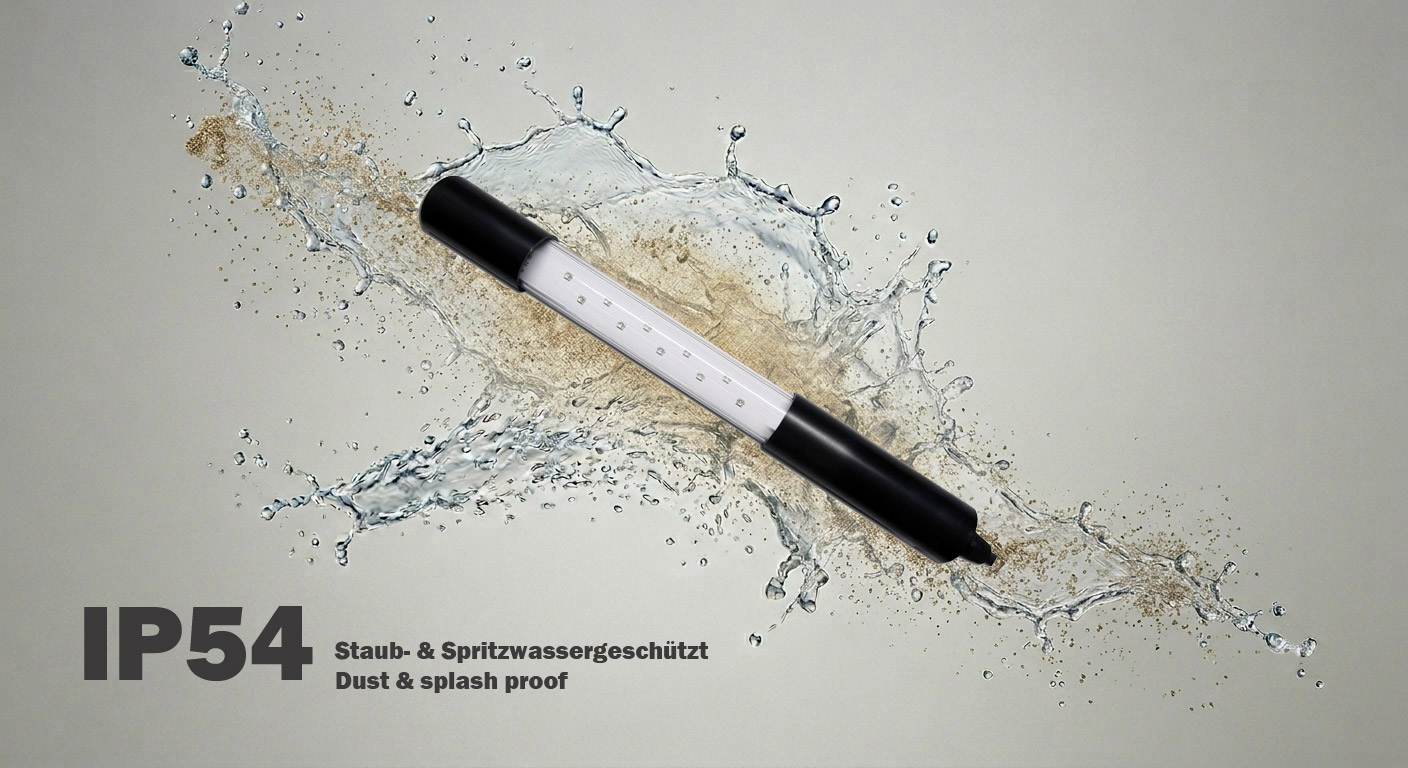

- Protection category: IP54 (version with clamps)
- Protection category: IP20 (version with suction cups)
- Protection class: II
- On/Off switch: optional
- Cable: 5m H05RN-F 2x1mm²
- Plug: contour plug
- Voltage variants: 230V
| Voltage | 230V AC |
| Current | 0,035A |
| Protection class | II |
| Number LED | 10 |
| Power | 4,5W |
| Wavelength | 365nm |
| Lifetime LED | > 50.000h |
| Tamb | -20°C - +40°C |
| IP protection | IP54 (version with clamps) IP20 (version with suction cups) |
| Protective tube | Plexiglas, 30mm Ø |
| End caps | ABS |
| Fastening | clamps or suction cups |
| On-/Off switch | optional |
| Cable | H05RN-F 2x1mm² |
| Plug | yes |
| Weight | ca. 0,5kg |
| Length | ca. 330mm |
| KE-LED-EA 3010 UV-A tube luminaire / Dimensions in mm | ||||||
| a | b | c | d | e | f | g |
| 60 | 145 | 105 | 20 | 33 | 30 | 330 |
2x spring steel clamps included (optional 2x suction cup)
- Datasheet KE-LED-EA 3010 UV-A (629.61 KB)
