KE-LED 5030-P – XXL LED hand lamp for maximum area illumination
The KE-LED 5030-P is a premium-class LED hand lamp developed for industrial applications where large work areas need to be illuminated brightly and evenly. Equipped with 30 POWER LEDs, it delivers exceptional light output – ideal for maintenance, service, and inspection tasks in demanding environments.
Despite its impressive length of nearly 950 mm, the lamp remains compact enough for mobile use. The impact-resistant polycarbonate protective tube with integrated diffuser film ensures uniform and glare-free light distribution. With an IP65 rating, the lamp is dustproof and resistant to water jets – making it perfect for tough industrial settings.
Various voltage versions make the KE-LED 5030-P suitable for workshops, construction sites, or industrial facilities.
Your benefits at a glance

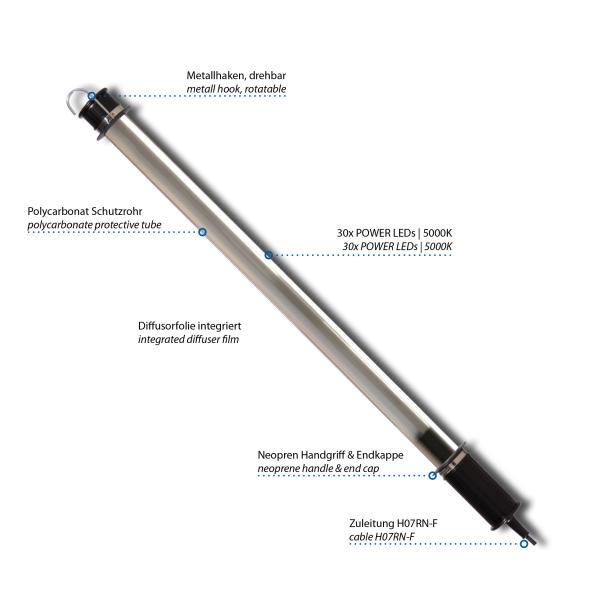

• Extra-long design with an especially large illuminated area
• High-performance lighting with 30 POWER LEDs
• Even, glare-free illumination thanks to integrated diffuser film
• Impact-resistant polycarbonate tube for maximum durability

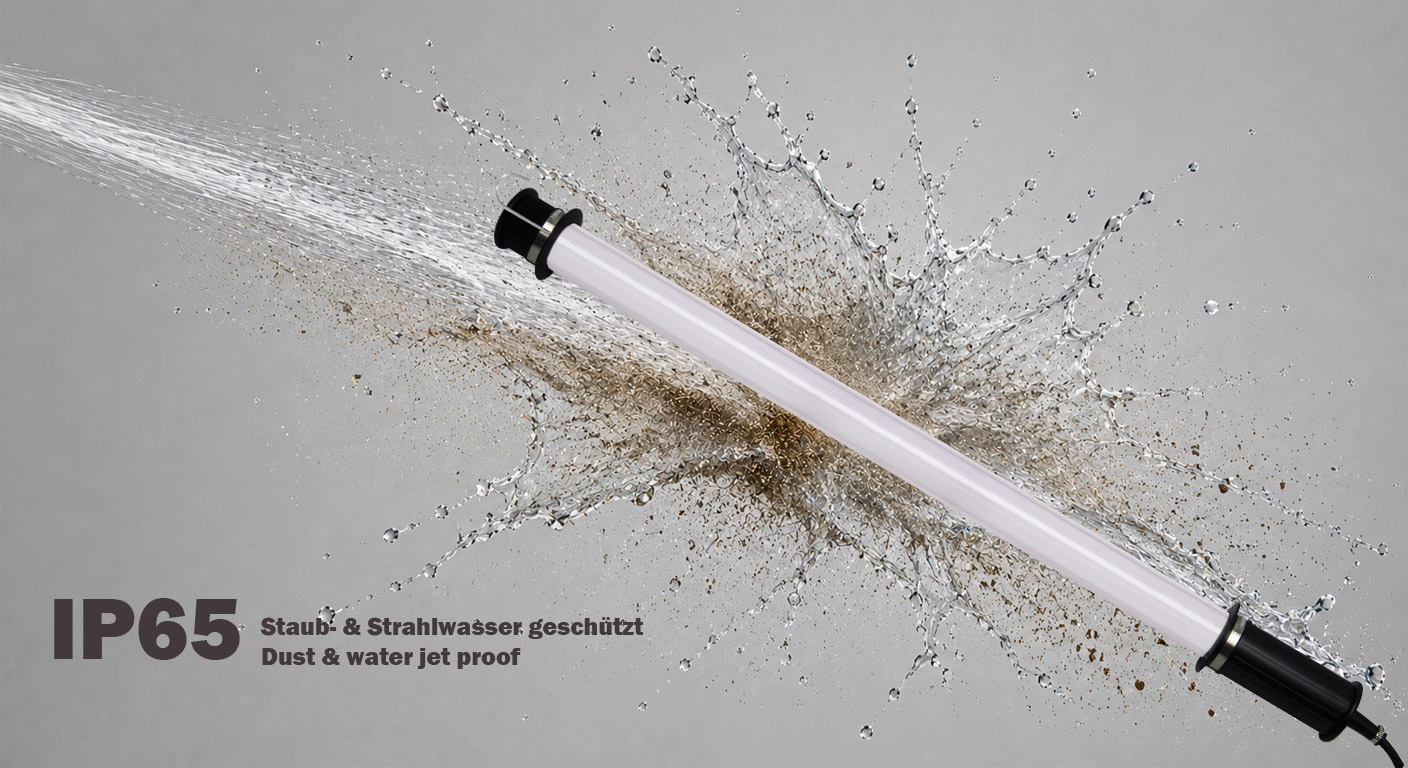

• IP65 – dustproof and water jet resistant for harsh environments
• Rotatable metal hook for flexible positioning
• 5 m heavy-duty rubber cable (H07RN-F) for extended reach
• Available in multiple voltage options – suitable for every application
Technical specifications
-
Light source: 30 POWER LEDs / 5000 K
-
Length: approx. 950 mm
-
Protective tube: Polycarbonate with diffuser film, Ø 50 mm, impact-resistant
-
Handle & end cap: PVC, black
-
Metal hook: Yes, rotatable
-
Protection rating / class: IP65 | II / III
-
Power cable: 5 m H07RN-F
-
Voltage versions: 230V / 110V / 42V / 24V
-
Plug: Included with 230V version; optional for other versions
The KE-LED 5030-P is the ultimate LED hand lamp for professionals who refuse to compromise on lighting performance. Extra-long, extremely bright, and built to last – a true heavy-duty solution for industrial, workshop, and construction use.
| Nominal voltage / PF | 230V AC / > ,0,7 | 110V AC/DC | 42V AC/DC | 24V AC/DC |
| Current | 0,13 A | 0,185 A | 0,47 A | 0,8 A |
| Power | 25 W | 20 W | 20 W | 21 W |
| Protection class | II | II | III | III |
| Real lumen lamp | 3200 LM | 2550 LM | 2400 LM | 2500 LM |
| Luminaire contains light source with EEC |
 |
|
|
|
| Number LED | 30 | |||
| Color temperature | 5000 K | |||
| CRI | > 80 | |||
| Lifetime LED | > 50.000 h | |||
| Tamb | -20 °C to +40 °C | |||
| IP protection | IP65 | |||
| Diffuser film | yes | |||
| Protective tube | polycarbonate | |||
| Handle / End cap | PVC | |||
| Suspension hook | yes, rotatable | |||
| Cable | H07RN-F | |||
| Plug | 230V yes / other voltage optional | |||
| Weight | ca.1,5 kg | |||
| Length | 945 mm | |||
| KE-LED 5030-P hand lamp / Dimensions in mm | ||||||||
| a | b | c | d | e | f | g | h | i |
| 30 | 50 | 640 | 50 | 130 | 40 | 75 | 50 | 945 |
| Art-Nr. | 230V | Length of the supply line |
| 131480 | 220-240 Volt AC | 5 m H07RN-F 2 x 1,0 mm² with plug |
| 131534 | 220-240 Volt AC | 10 m H07RN-F 2 x 1,0 mm² with plug |
| Art-Nr. | 110V | Length of the supply line |
| 131481 | 110 Volt AC/DC | 5 m H07RN-F 2 x 1,0 mm² w/o plug |
| 131481+CEE | 110 Volt AC/DC | 5 m H07RN-F 2 x 1,0 mm² with CEE-plug |
| 131535 | 110 Volt AC/DC | 10 m H07RN-F 2 x 1,0 mm² w/o plug |
| 131535+CEE | 110 Volt AC/DC | 10 m H07RN-F 2 x 1,0 mm² with CEE-plug |
| Art-Nr. | 42V | Length of the supply line |
| 131482 | 42 Volt AC/DC | 5 m H07RN-F 2 x 1,0 mm² w/o plug |
| 131482+CEE | 42 Volt AC/DC | 5 m H07RN-F 2 x 1,0 mm² with CEE-plug |
| 131572 | 42 Volt AC/DC | 10 m H07RN-F 2 x 1,0 mm² w/o plug |
| 131572+CEE | 42 Volt AC/DC | 10 m H07RN-F 2 x 1,0 mm² with CEE-plug |
| Art-Nr. | 24V | Length of the supply line |
| 131483 | 24 Volt AC/DC | 5 m H07RN-F 2 x 1,0 mm² w/o plug |
| 131483+CEE | 24 Volt AC/DC | 5 m H07RN-F 2 x 1,0 mm² with CEE-plug |
| 131483+KFZ | 24 Volt AC/DC | 5 m H07RN-F 2 x 1,0 mm² with car-plug |
| 131540 | 24 Volt AC/DC | 10 m H07RN-F 2 x 1,0 mm² w/o plug |
| 131540+CEE | 24 Volt AC/DC | 10 m H07RN-F 2 x 1,0 mm² mit with CEE-plug |
| 131540+KFZ | 24 Volt AC/DC | 10 m H07RN-F 2 x 1,0 mm² with car-plug |
