KE-LED 5024-P hand lamp 24x POWER LED | IP68
KE-LED 5024-P LED hand lamp | IP68
The KE-LED 5024-P LED hand lamp is a real light giant with 24 POWER LEDs and thus provides incredibly strong lighting. The combination of this immense light intensity and the IP68 protection class, which makes the light dustproof and waterproof, makes it perfect for cleaning work on large containers as well as for damp and wet environments. To ensure the durability and functionality of the cable, an anti-kink cable gland has been fitted to provide reliable bending protection. The standard equipment of the flashlight includes a supply line in H07RN-F specification, which is optionally available as H07BQ-F.
Features
- Illuminant: 24 POWER LED / 6500 K
- Protection tube: polycarbonate, shock-resistant, 50 mm Ø
- Handle / end cap: neoprene, black
- Metal hook: yes, rotatable
- Protection category: IP68 - 50m/5h (dust- and waterproof)
- Protection class: III
- Cable: 10 m H07RN-F (optional 10 m H07BQ-F)
- Voltage: 24V
- Special models - longer cable, cable type, plug etc. on request.
| Nominal voltage | 24V AC/DC |
| Current | 0,550 A |
| Power | 15,5 W |
| Protection class | III |
| Real lumen | 1650 Lm |
| Energy efficiency |  |
| Energy label |  |
| Number LED | 24 |
| Color temperature | 6500 K |
| CRI | > 70 |
| Lifetime LED | > 50.000 h |
| Tamb | -20 °C to +40 °C |
| IP protection | IP68 |
| Diffuser film | yes |
| Protective tube | polycarbonate |
| Handle / End cap | neoprene |
| Suspension hook | yes, rotatable |
| Cable optional | H07RN / H07BQ |
| Plug | optional |
| Weight | ca. 2,2 kg |
| Length | ca. 530 mm |

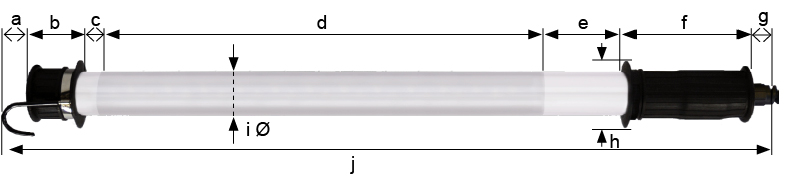

| KE-LED 5024 - IP68 hand lamp / Dimensions in mm | |||||||||
| a | b | c | d | e | f | g | h | i | j |
| 30 | 50 | 30 | 480 | 90 | 130 | 20 | 75 | 50 | 830 |
Article overview KE-LED 5024 IP68 hand lamp
| Art-Nr. | 24V | Length of the supply line - H07RN-F |
| 131521 | 24 Volt AC/DC | 10 m H07RN-F 2 x 1,0 mm² w/o plug |
| 131521+CEE | 24 Volt AC/DC | 10 m H07RN-F 2 x 1,0 mm² with CEE-plug |
| 131839 | 24 Volt AC/DC | 25 m H07RN-F 2 x 1,0 mm² w/o plug |
| 131839+CEE | 24 Volt AC/DC | 20 m H07RN-F 2 x 1,0 mm² with CEE-plug |
| Art-Nr. | 24V | Length of the supply line - H07BQ-F |
| 131840 | 24 Volt AC/DC | 10 m H07BQ-F 2 x 1,5 mm² w/o plug |
| 131840+CEE | 24 Volt AC/DC | 10 m H07BQ-F 2 x 1,5 mm² with CEE-plug |
| 131841 | 24 Volt AC/DC | 20 m H07BQ-F 2 x 1,5 mm² w/o plug |
| 131841+CEE | 24 Volt AC/DC | 20 m H07BQ-F 2 x 1,5 mm² with CEE-plug |
- Datasheet KE-LED 5024-P IP68 (1.84 MB)
