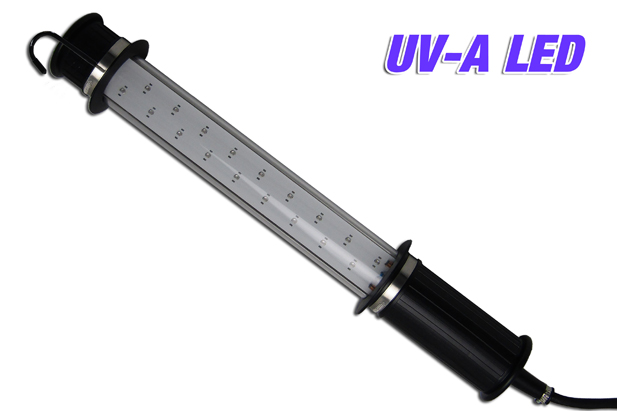

KE-LED 5018 UV-A LED hand lamp | IP54
The KE-LED 5018 UV-A is a state-of-the-art hand lamp that offers impressive performance and flexibility thanks to its 18 powerful UV-A LED modules. It is designed to support precise inspection and quality control tasks in various industries such as manufacturing, inspection engineering and forensics. This hand lamp provides intense and uniform illumination with a wavelength of 365nm, enabling accurate detection of fluorescent materials. This makes them particularly suitable for demanding inspection tasks. It is also protected against dust and splash water according to IP54, which ensures its reliability and longevity. The possible uses of the KE-LED 5018 UV-A are diverse and extend across various industries and areas of application. It is suitable for quality control and inspection in production as well as for forensic analysis. It also finds application in areas such as leak detection, disinfection and material characterization. Its robustness and versatility make it an excellent choice for various applications.
Features

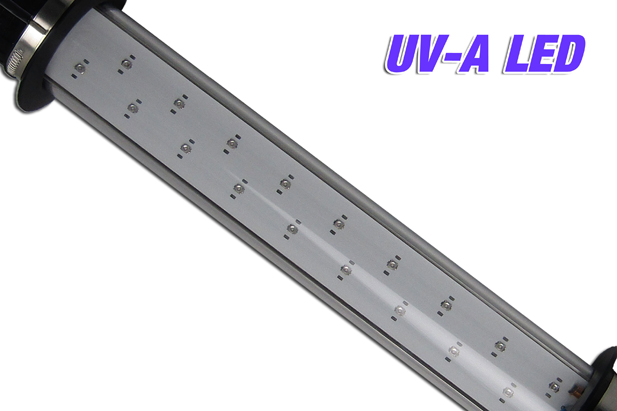

- lluminant: 18x UV-A LEDs / 365nm
- Protection tube: plexiglass, 50mm Ø

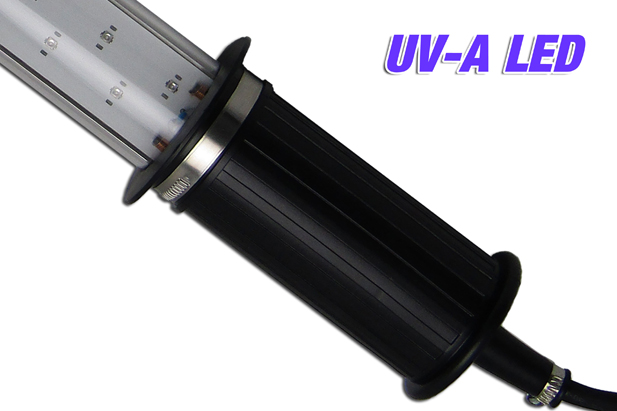

- Handle / end cap: PVC, black

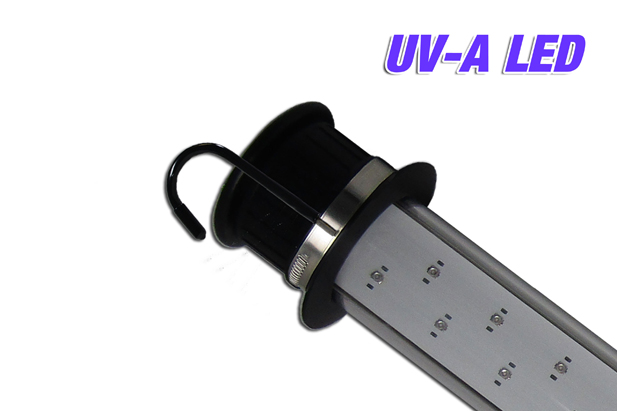

- Metal hook: yes, rotatable
- Protection category: IP54
- Protection class: II
- Cable: 5m H05RN-F with plug
- Voltage variants: 230V
| Voltage | 230V AC |
| Current | 0,060A |
| Protection class | II |
| Number LED | 10 |
| Power | 9W |
| Wavelength | 365nm |
| Lifetime LED | > 50.000h |
| Tamb | -20°C - +40°C |
| IP protection | IP54 |
| Protective tube | Plexiglas, 50mm Ø |
| Handle / end cap | PVC |
| Suspension hook | yes |
| Cable | H05RN-F |
| Plug | yes |
| Weight | ca. 0,8kg |
| Length | ca. 530mm |

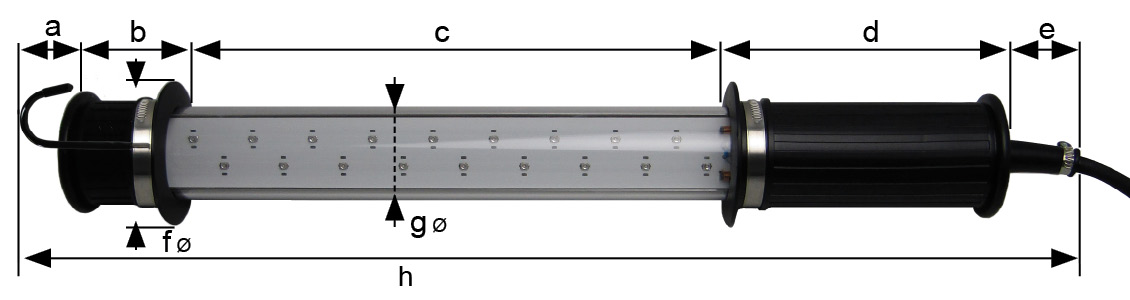

| KE-LED 5018 UV-A hand lamp / Dimensions in mm | |||||||
| a | b | c | d | e | f | g | h |
| 30 | 50 | 280 | 130 | 40 | 75 | 50 | 530 |
- Datasheet KE-LED 5018 UV-A (741.38 KB)
- Safety instructions (563.81 KB)
