KE-LED 4010-P Industry LED hand lamp | IP65
The KE-LED 4010-P industrial LED hand lamp is the ideal tool for anyone who needs a robust and reliable work lamp. With a polycarbonate protective tube and 10 POWER LED modules, this light is extremely durable and offers a glare-free work light. The diffuser film is integrated to gently scatter the light and thus ensure even illumination. The metal hook makes it easy to hang the lamp anywhere, leaving both hands free. The flashlight is IP65 certified, which means that it is protected against dust and water and can therefore also be used in humid environments. The neoprene handle ensures a secure hold and the H07RN-F cable guarantees high flexibility in use. This LED hand lamp is perfect for use in workshops, construction sites or other demanding environments where bright and reliable lighting is required. With the KE-LED 4010-P industrial you are always well prepared!
Features
- Illuminant: 10 POWER LED / 5000 K
- Protection tube: polycarbonate, shock-resistant, 40 mm Ø

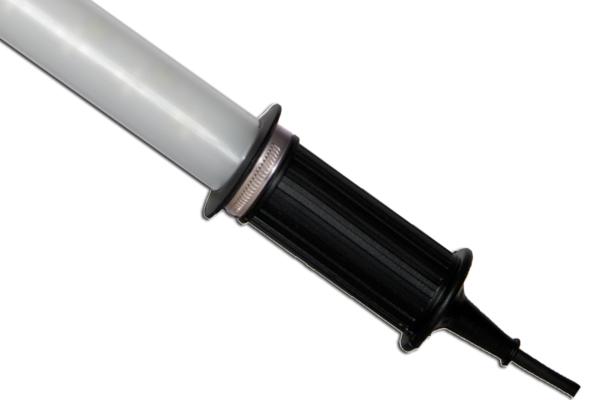

- Handle / end cap: Neoprene, black
- Metal hook: yes, rotatable

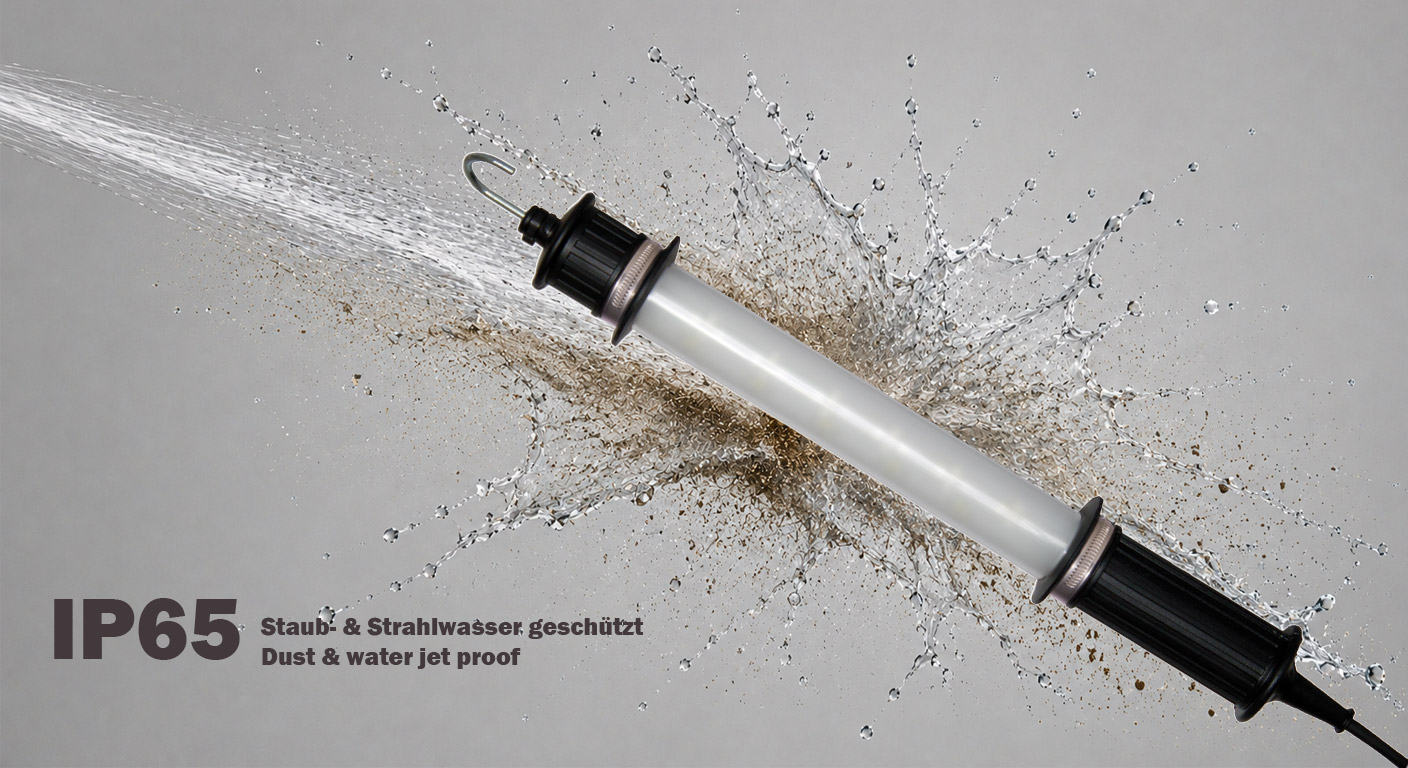

- Protection category: IP65
- Protection class: II respectively III
- Cable: 5 m H07RN-F
- Voltage variants: 230V / 110V / 42V / 24V
- Plug: included with the 230V version / optionally available with other voltages
| Nominal voltage / PF | 230V AC / > 0,5 | 110V AC/DC | 42V AC/DC | 24V AC/DC |
| Current | 0,04 A | 0,085 A | 0,175 A | 0,31 A |
| Power | 7,4 W | 7 W | 8 W | 8,5 W |
| Protection class | II | II | III | III |
| Real lumen lamp | 780 Lm | 750 Lm | 850 Lm | 820 Lm |
| Luminaire contains light source with EEC |
 |
|
|
|
| Number LED | 10 | |||
| Color temperature | 5000 K | |||
| CRI | > 80 | |||
| Lifetime LED | > 50.000 h | |||
| Tamb | -20 °C to +40 °C | |||
| IP protection | IP65 | |||
| Diffuser film | yes | |||
| Protective tube | polycarbonate | |||
| Handle / End cap | neoprene | |||
| Suspension hook | yes, rotatable | |||
| Cable | H07RN-F | |||
| Plug | 230V yes / other voltage optional | |||
| Weight | ca. 0,75 kg | |||
| Length | 510 mm | |||
| KE-LED 4010 Industry hand lamp / Dimensions in mm | |||||||
| a | b | c | d | e | f | g | h |
| 45 | 70 | 240 | 115 | 40 | 65 | 40 | 510 |
| Art-Nr. | 230V | Length of the supply line |
| 131429 | 220-240 Volt AC | 5 m H07RN-F 2 x 1,0 mm² with plug |
| 131459 | 220-240 Volt AC | 10 m H07RN-F 2 x 1,0 mm² with plug |
| Art-Nr. | 110V | Length of the supply line |
| 131430 | 110 Volt AC/DC | 5 m H07RN-F 2 x 1,0 mm² w/o plug |
| 131430+CEE | 110 Volt AC/DC | 5 m H07RN-F 2 x 1,0 mm² with CEE-plug |
| 131564 | 110 Volt AC/DC | 10 m H07RN-F 2 x 1,0 mm² w/o plug |
| 131564+CEE | 110 Volt AC/DC | 10 m H07RN-F 2 x 1,0 mm² with CEE-plug |
| Art-Nr. | 42V | Length of the supply line |
| 131431 | 42 Volt AC/DC | 5 m H07RN-F 2 x 1,0 mm² w/o plug |
| 131431+CEE | 42 Volt AC/DC | 5 m H07RN-F 2 x 1,0 mm² with CEE-plug |
| 131442 | 42 Volt AC/DC | 10 m H07RN-F 2 x 1,0 mm² w/o plug |
| 131442+CEE | 42 Volt AC/DC | 10 m H07RN-F 2 x 1,0 mm² with CEE-plug |
| Art-Nr. | 24V | Length of the supply line |
| 131432 | 24 Volt AC/DC | 5 m H07RN-F 2 x 1,0 mm² w/o plug |
| 131432+CEE | 24 Volt AC/DC | 5 m H07RN-F 2 x 1,0 mm² with CEE-plug |
| 131432+KFZ | 24 Volt AC/DC | 5 m H07RN-F 2 x 1,0 mm² with car-plug |
| 131448 | 24 Volt AC/DC | 10 m H07RN-F 2 x 1,0 mm² w/o plug |
| 131448+CEE | 24 Volt AC/DC | 10 m H07RN-F 2 x 1,0 mm² with CEE-plug |
| 131448+KFZ | 24 Volt AC/DC | 10 m H07RN-F 2 x 1,0 mm² with car-plug |
