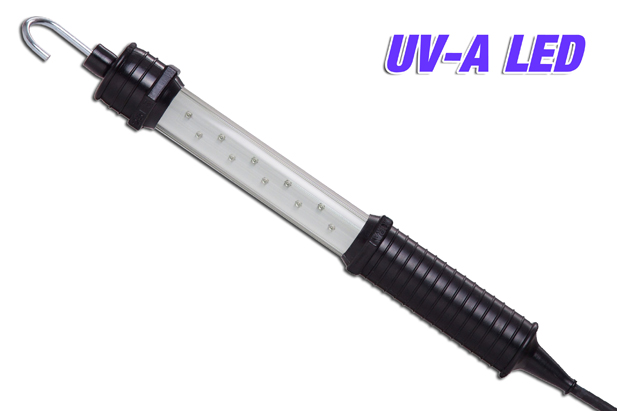

KE-LED 3010 UV-A LED hand lamp | IP54
The KE-LED 3010 UV-A hand lamp impresses with its compact design and offers outstanding performance thanks to its LED technology. It is specifically designed to achieve precise results in a variety of applications such as quality control, inspection, adhesive curing and forensics. The KE-LED 3010 UV-A hand lamp uses high-quality UV-A LED technology, which ensures uniform and intensive illumination with a wavelength of 365nm. This specific wavelength enables precise detection of fluorescent materials and is therefore particularly suitable for demanding inspection tasks. In addition, it is protected against the ingress of dust and splash water according to protection class IP54, which underlines its reliability and durability.
Features
- lluminant: 10x UV-A LEDs / 365nm
- Protection tube: plexiglass, 30mm Ø
- Handle / end cap: PVC, black
- Metal hook: yes, rotatable
- Protection category: IP54
- Protection class: II
- Cable: 5m H05RN-F with plug
- Voltage variants: 230V
| Voltage | 230V AC |
| Current | 0,035A |
| Protection class | II |
| Number LED | 10 |
| Power | 4,5W |
| Wavelength | 365nm |
| Lifetime LED | > 50.000h |
| Tamb | -20°C - +40°C |
| IP protection | IP54 |
| Protective tube | Plexiglas, 30mm Ø |
| Handle / end cap | PVC |
| Suspension hook | yes |
| Cable | H05RN-F |
| Plug | yes |
| Weight | ca. 0,5kg |
| Length | ca. 390mm |

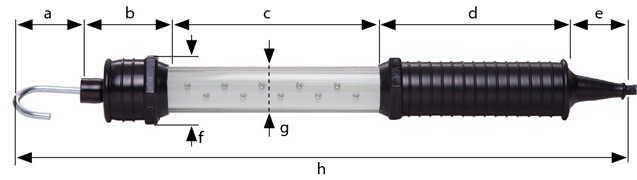

| KE-LED 3010 UV-A hand lamp / Dimensions in mm | |||||||
| a | b | c | d | e | f | g | h |
| 45 | 55 | 125 | 115 | 40 | 45 | 30 | 390 |
- Datasheet KE-LED 3010 UV-A (476.5 KB)
