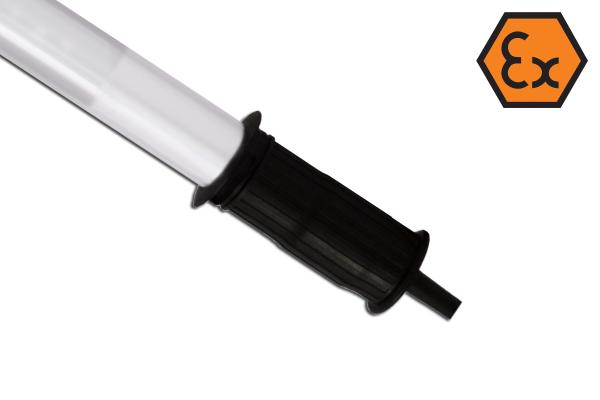

The KE-LED-EX 5018 is a revolutionary LED hand lamp that was specially developed for use in cleaning work in explosion-proof areas. With its 18 power LEDs and 360° illumination, it offers a homogeneous work light that ensures optimal visibility even in dark corners and areas that are difficult to access. The 360° light of the KE-LED-EX 5018 ensures that even large areas are evenly illuminated and that no areas remain in the dark, even when cleaning tanks and silos. Weighing only 1.5 kg, the lamp is pleasantly easy to handle and thanks to the neoprene handle it lies securely in the hand. Another advantage of the KE-LED-EX 5018 is the integrated diffuser film, which ensures even better light distribution. All in all, the KE-LED-EX 5018 is an indispensable aid for cleaning work in explosion-proof areas. With its homogeneous working light and easy handling, it makes every job easier and ensures a perfect result.
Features
- ex-proof LED hand lamp with 18 POWER LEDs / 6500K
- 360° ilumination
- Protection tube: polycarbonate, shock-resistant, 50 mm Ø
- Diffusor foil integrated
- Handle / end cap: neoprene, black
- Metal hook: yes, plastified
- Protection category: IP68 - 50m/5h (dust- and waterproof)
- Protection class: II / III
- Cable standard version: 10m H07RN-F (extendable in 5 m steps)
- Standard version without plug, Ex plug (ATX, CEAG) available on request
- Available in the voltage versions: 24V
- Special requests - as covered by our Ex-certification - can be fulfilled
- KIRA explosion proof LED hand lamps (leadlamps) for safe use in the areas: Sewage treatment plants, sewer inspection, electricity providers, mills, biogas plants, gas stations, tank automotive, aerospace industry, aircraft maintenance & inspection, oil rigs, offshore, shipyards, THW, EX-zones, explosive dust and gas atmospheres, gas interference, crafts, food industry, chemical industry, petrochemical industry
| Nominal voltage | 24V |
| AC/DC | |
| Current | 0,33 A |
| Power | 10W |
| Protection class | III |
| Real lumen | 1000Lm |
| Energy efficiency |  |
| Energy label |  |
| Zones | 1, 2, 21, 22 |
| Explosion protection gas |  II 2 G Ex eb mb op is IIC T4 Gb |
| Explosion protection dust | II 2 D Ex tb op is IIIC T105° Db |
| Number LED | 18 |
| Color temperature | 6500K |
| CRI | > 70 |
| Lifetime LED | > 50.000h |
| Tamb | -20°C - +40°C |
| IP protection | IP68 |
| Diffuser film | yes |
| Protective tube | polycarbonate |
| Handle / End cap | neoprene |
| Suspension hook | yes, rotatable |
| Cable | H07RN-F |
| Plug | without |
| Weight | ca. 1,5kg |
| Length | ca. 600mm |
